Portable Fire Pumps
For Interface Structure Protection, Flood, and Dust Control
Delta is proud to be the Canadian sales agent for the Tohatsu Portable Fire Pump line and supporting Maple Marine Services across Western Canada. Tohatsu developed Japan's first portable fire pump in 1949. As the pioneer of disaster solutions, Tohatsu’s history highlights a commitment in providing quality products and services out of Japan for over 70 years.
Originally designed for structure fire protection in Japan, the Tohatsu Fire pumps are high performance products designed for serious commercial use. Reliable and straight-forward designs that operators feel comfortable using, all backed up with strong support service available right here in BC.
Best balance of performance and weight, the Tohatsu Fire Pump line provides the best solutions to match your fire protection, or de-watering flood control needs. Big flow, medium flow, and compact units are available throughout the Tohatsu performance lineup. Electronic fuel injection means fast starts and unparalleled reliability. Quick priming and suction water cooled all adds to long term reliability and quiet operation throughout the lineup.
Key features include:
Electronic fuel injection means reliable, and easy starting, every time at all elevations
Many models are adaptable to an external fuel source for greater run times
Over 30 feet of vertical suction with 4 inch intake hose for the VE1500-W, VF53, and VF63 models
Large 2.5 inch dual discharge ports to run individual or closed loop systems for sprinklers
Large 4-inch suction port to support high-volume capacity
Salt Water Certified meaning the ideal fire suppression solution for larger marine craft
Automatic water sensing feature on VF63AS-R for pressure boosting kicker pump applications over long hose run distances
Model VE1500-W
Specifications
-
Type: 2-StrokeCooling System: Suction Water Cooled
Output: 60 HP (44 kW)Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 6.34 gal (24 Lit)
Fuel Consumption: 5.81 gal / hr (22 Lit / hr)
Fuel System: Electronic Fuel Injection
Oil Tank Capacity: 0.42 gal (1.6 Lit)
-
Starting: Electric and Manual
Priming System: Manual
-
Discharge Number: Twin
Discharge Valve: Flat Valve
-
Dry Weight: 236 lbs (104 kg)
Wet Weight: 280 lbs (124 kg)
-
At Section Height 3m (9.8 feet)
525 gal / min at 75 psi
515 gal / min at 100 psi
425 gal / mins at 145 psi
275 gal / min at 200 psi
-
High Volume Water Flow
Lightweight & Compact
Contact us for pricing.
Model VF53AS
Specifications
-
Type: 4-Stroke
Cooling System: Suction Water Cooled
Output: 30 HP (22.1 kW)
Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 2.64 gal (10 Lit)
Fuel Consumption: 2.51 gal / hr (9.5 Lit / hr)
Fuel System: Electronic Fuel Injection
Oil Tank Capacity: 0.53 gal (2 Lit)
-
Starting: Electric and Manual
Priming System: Auto Priming
-
Discharge Number: Twin
Discharge Valve: Ball Valve / Flat Valve
-
Dry Weight: 222 lbs (101 kg)
Wet Weight: 245 lbs (111 kg)
-
At Section Height 3m (9.8 feet)
340 gal / min at 75 psi
290 gal / min at 100 psi
195 gal / min at 140 psi
-
Quick Priming
Engine Overheat Protection Sensor
Auto Priming System
Contact us for pricing.
Model VF63AS-R
Specifications
-
Type: 4-Stroke
Cooling System: Suction Water Cooled
Output: 30 HP (22.1 kW)
Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 2.64 gal (10 Lit)
Fuel Consumption: 2.51 gal / hr (9.5 Lit / hr)
Fuel System: Electronic Fuel Injection
Oil Tank Capacity: 0.53 gal (2 Lit)
-
Starting: Electric and Manual
Priming System: Auto Priming
-
Discharge Number: Twin
Discharge Valve: Ball Valve
-
Dry Weight: 225 lbs (102 kg)
Wet Weight: 247 lbs (112 kg)
-
At Section Height 3m (9.8 feet)
340 gal / min at 75 psi
290 gal / min at 100 psi
195 gal / min at 140 psi
-
The relay pumping line with VF63AS-R can be extended endlessly.
When the water hits the pump, the engine starts automatically, which means that no one needs to be on the pump to operate.
Contact us for pricing.

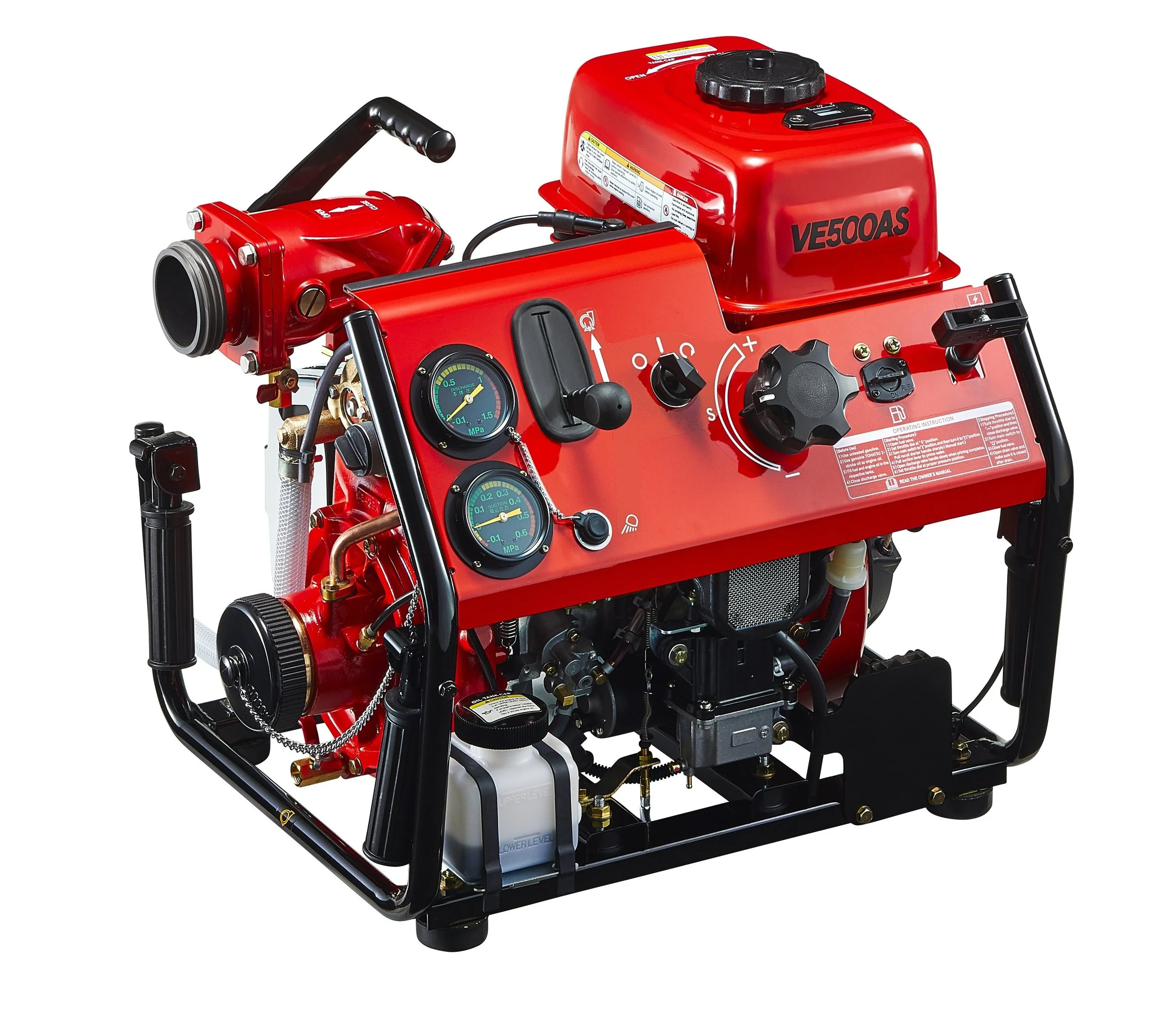

Model VE500AS
Specifications
-
Type: 2-StrokeCooling System: Air CooledOutput: 12 HP (8.6 kW)
Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 1.57 gal (5.95 Lit)
Fuel Consumption: 1.42 gal / hr (5.4 Lit / hr)
Fuel System: Electronic Fuel Injection
Oil Tank Capacity: 0.13 gal (0.5 Lit)
-
Starting: Electric and Manual
Priming System: Manual
-
Discharge Number: Single
Discharge Valve: Ball Valve
-
Dry Weight: 108 lbs (49 kg)
Wet Weight: 121 lbs (55 kg)
-
At Section Height 3m (9.8 feet)
155 gal / min at 75 psi
105 gal / min at 100 psi
-
Advanced engine technology for any tough environment.
Special surface treatment to deliver robust and durable equipment.
Small and compact design philosophy.
Contact us for pricing.
Model VF21BS
Specifications
-
Type: 4-StrokeCooling System: Suction Water Cooled
Output: 10 HP (7.3 kW)
Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 1.06 gal (4 Lit)
Fuel Consumption: 0.82 gal / hr (3.1 Lit / hr)
Fuel System: Single Carburetor
Oil Tank Capacity: 0.26 gal (1 Lit)
-
Starting: Electric and Manual
Priming System: Manual
-
Discharge Number: Single
Discharge Valve: Ball Valve
-
Dry Weight: 115 lbs (52 kg)
Wet Weight: 126 lbs (57 kg)
-
At Section Height 3m (9.8 feet)
150 gal / min at 75 psi
105 gal / min at 100 psi
-
Lightweight & Compact
Simple Mechanism
Easy Operation
Contact us for pricing.
Model VC72AS
Specifications
-
Type: 2-Stroke
Cooling System: Suction Water Cooled
Output: 40 HP (30 kW)
Fuel Type: Unleaded Gasoline (min 87 Octane)
Fuel Tank Capacity: 4.76 gal (18 Lit)
Fuel Consumption: 3.43 gal / hr (12 Lit / hr)
Fuel System: Single Carburetor with Auto Choke
Oil Tank Capacity: 0.42 gal (1.6 Lit)
-
Starting: Electric and Manual
Priming System: Manual
-
Discharge Number: Single
Discharge Valve: Ball Valve/Flat Valve
-
Dry Weight: 187 lbs (85 kg)
Wet Weight: 223 lbs (101 kg)
-
At Section Height 3m (9.8 feet)
500 gal / min at 75 psi
375 gal / min at 100 psi
330 gal / min 120 psi
265 gal / min at 150 psi
-
Lightweight and Compact
High Performance
Priming
Engine Overheat Protection Sensor
Contact for pricing.
